Drawer planing fixture - Derek Cohen - 05-23-2020
This concept is not original, but I breathed on it to make it adjustable and rigid in use.

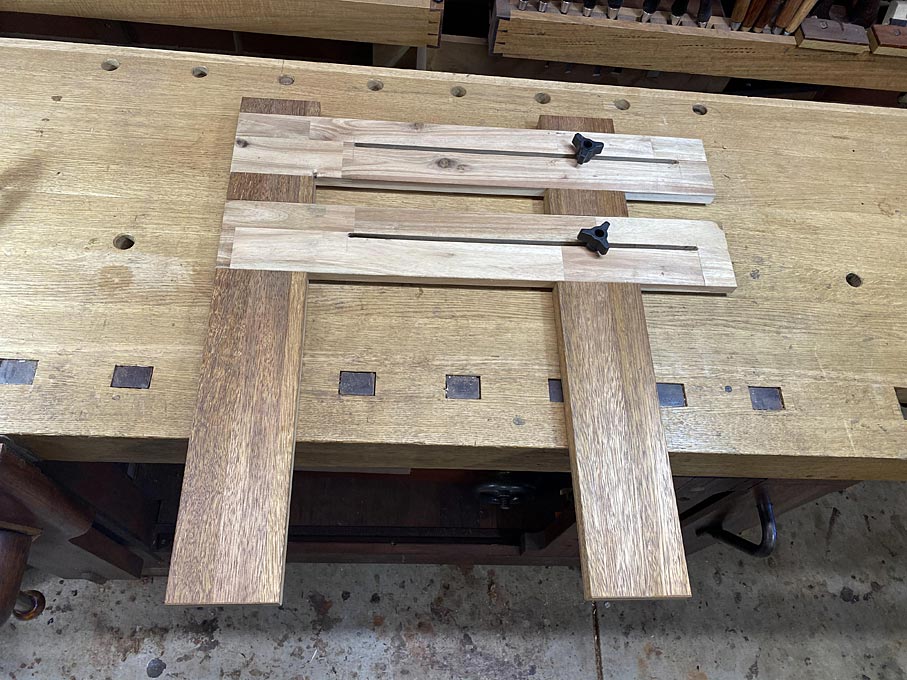

This is the basic design ...
![[Image: 1a.jpg]](https://i.postimg.cc/rpyQj7R6/1a.jpg)

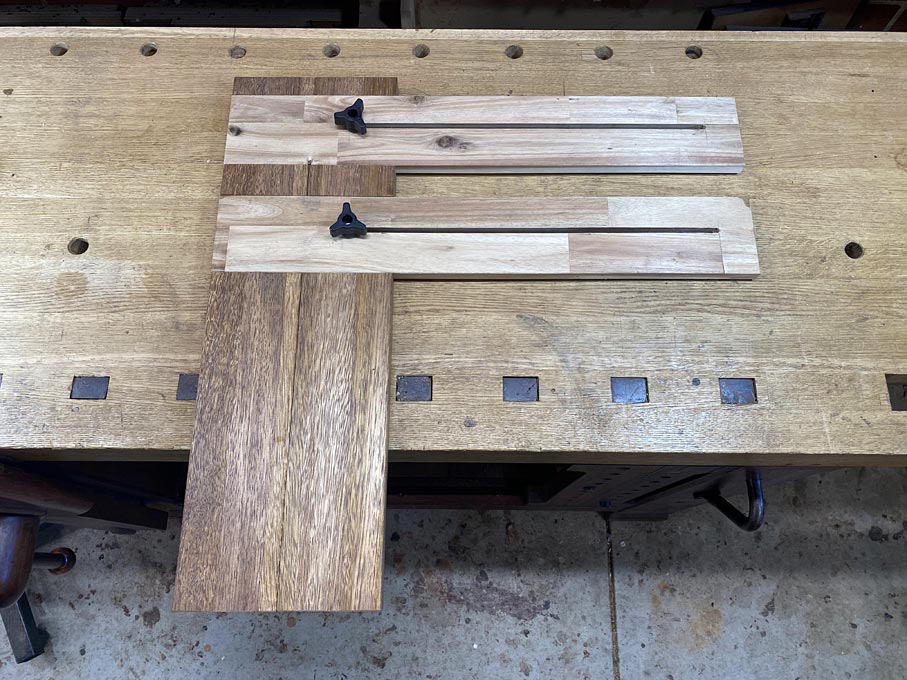

The legs can open to 24" and close down to near nothing ...
![[Image: 3a.jpg]](https://i.postimg.cc/R0PGDGwW/3a.jpg)
The arms slide in wide mortices, and are held by screwed clamps into threaded inserts ...
![[Image: 4a.jpg]](https://i.postimg.cc/d3CBDYpC/4a.jpg)

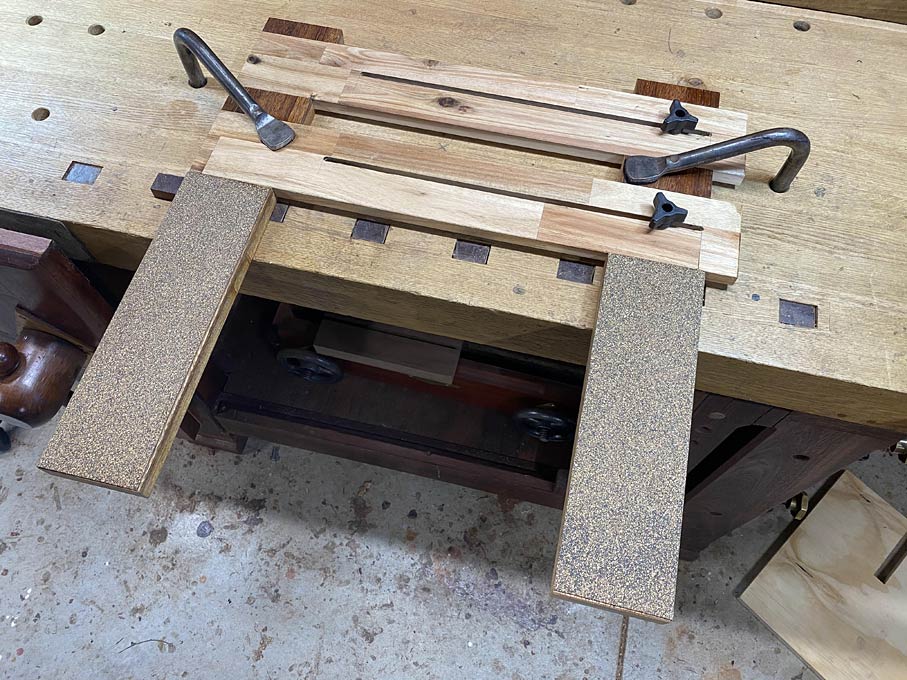

To complete the build, the legs are covered in cork-rubber. This protects the inside of a drawer. It has the extra benefit of being a superb non-slip.
![[Image: 5a.jpg]](https://i.postimg.cc/LXwDHXCR/5a.jpg)

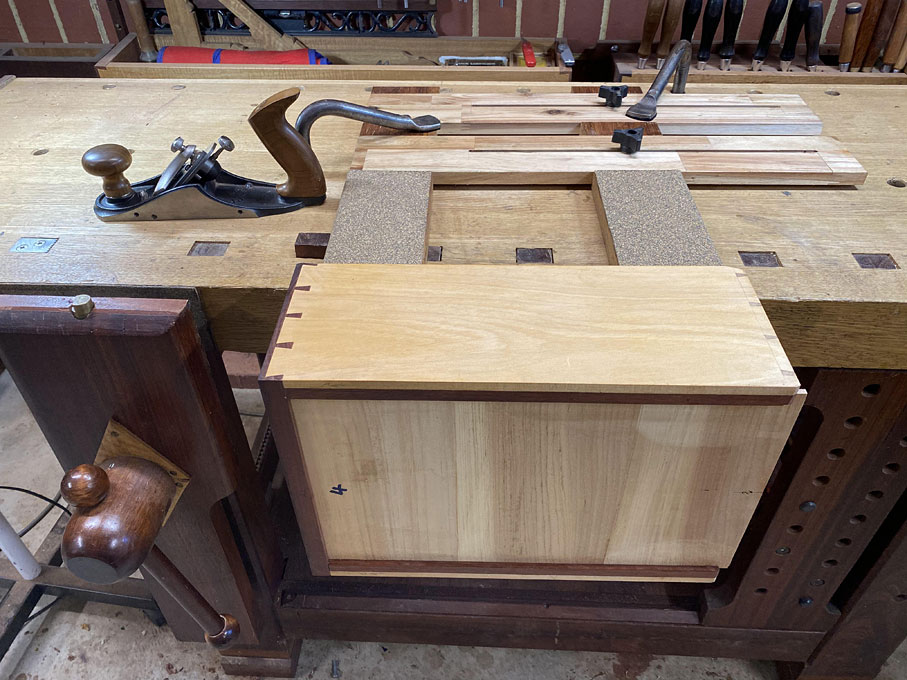

In use ...
![[Image: 6a.jpg]](https://i.postimg.cc/y63nLmxN/6a.jpg)
![[Image: 7a.jpg]](https://i.postimg.cc/fLJ5nXvB/7a.jpg)
Regards from Perth
Derek
RE: Drawer planing fixture - theoldfart - 05-23-2020
Derek, in the last pic it looks like the bottom is secured by nailing into the back. Is this your usual way for this style drawer? I was planning to use a brass slotted screw in the same location. Any thoughts on yea or nay relative to using a screw?
RE: Drawer planing fixture - Derek Cohen - 05-23-2020
(05-23-2020, 09:29 PM)theoldfart Wrote: Derek, in the last pic it looks like the bottom is secured by nailing into the back. Is this your usual way for this style drawer? I was planning to use a brass slotted screw in the same location. Any thoughts on yea or nay relative to using a screw?
The rear of the bottom is not held by a nail, but a slot with a screw. The entire bottom slides into drawer slips. The dark wood is hard Jarrah for extra wear resistance.
See this page for a full example: http://www.inthewoodshop.com/Furniture/DrawerBottomsIntoSlips.html
Regards from Perth
Derek
