How to scribe this curve? - ®smpr_fi_mac® - 04-03-2021
I need to build a deck hatch for my sailboat. The forward edge is curved, as shown in the pics. I'm completely drawing a blank on how to transfer that curve onto a piece of plywood. Can you guys jog my memory?
RE: How to scribe this curve? - MT Woodworker - 04-03-2021
A lot of times I start with a cardboard template
RE: How to scribe this curve? - Roly - 04-03-2021
(04-03-2021, 04:50 PM)®smpr_fi_mac® Wrote: I need to build a deck hatch for my sailboat. The forward edge is curved, as shown in the pics. I'm completely drawing a blank on how to transfer that curve onto a piece of plywood. Can you guys jog my memory?
A compass with one point on the deck and the pencil point on the wood or a large fender washer or disk with a hole for a pencil point. Suggest scrap board for a template. Roly
RE: How to scribe this curve? - ®smpr_fi_mac® - 04-03-2021
Oh yeah! A fender washer! That's what I was trying to figure out!
MT, yeah I'll make a cardboard template. I did that earlier today building the weather hatch.
RE: How to scribe this curve? - ez-duzit - 04-04-2021
(04-03-2021, 05:33 PM)Roly Wrote: A compass with one point on the deck and the pencil point on the wood...
Typically this is how I do it to rough it out. Sometimes I use a block of scrap and a carpenter's pencil belt sanded into a wedge. Scribe it directly onto the workpiece. Use a Japanese marking knife on a scrap block to get the final scribe just perfect.

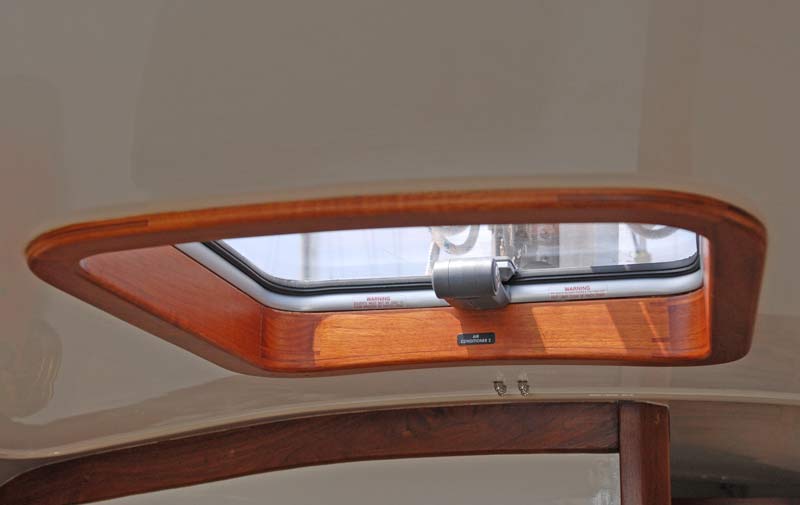

Here is an example of my work.
![[Image: bandit-2.jpg]](https://i.postimg.cc/4dQ7bF5q/bandit-2.jpg)
![[Image: bandit-1.jpg]](https://i.postimg.cc/MpgQWBHP/bandit-1.jpg)
RE: How to scribe this curve? - Timberwolf - 04-04-2021
(04-04-2021, 12:14 AM)ez-duzit Wrote: Typically this is how I do it to rough it out. Sometimes I use a block of scrap and a carpenter's pencil belt sanded into a wedge. Scribe it directly onto the workpiece. Use a Japanese marking knife on a scrap block to get the final scribe just perfect...................
Here is an example of my work.
Your work is outstanding!!!!!!!!!
